60° Partial Profile Laydown Threading Inserts – A60 / AG60 / G60 / N60 / Q60 Series
Features
- Product Type: High-quality laydown threading inserts (60° Partial Profile).
- Universal Solution: Our best-selling 16er ag60 threading insert covers a massive pitch range of 0.5 – 3.0 mm (48 – 8 TPI) in a single tool.
- Versatile Application: Premium threading inserts for lathe machining, compatible with steel, stainless steel, and cast iron.
- Full Inventory: Available in all standard I.C. sizes including the popular 16er threading inserts (3/8″ I.C) and heavy-duty 5/8″ sizes.
- Directional Options: We supply both standard right-hand and left hand thread insert options (EL/IL) for comprehensive machining capabilities.
Contact our sales team to discover all of your pricing options.
Product Overview
Optimize your CNC turning operations with our 60° Partial Profile laydown threading inserts. Designed for versatility, these threading inserts for lathe applications feature a non-topping geometry that cuts the thread groove without modifying the outer diameter (crest).
This smart design allows a single insert grade to machine a wide variety of pitches, significantly reducing tool inventory requirements. Whether you are running high-mix production or general maintenance, our inserts deliver precise thread forms and exceptional tool life.
Key Features & Benefits
- The “Universal” Standard: The industry-standard 16er ag60 threading insert is the ultimate cost-saver, capable of handling pitches from 0.5mm to 3.0mm without changing the tool.
- Comprehensive Range: We stock a complete line of sizes, from micro-boring 1/4″ I.C. up to robust 5/8″ I.C. inserts.
- Left Hand Availability: Beyond standard right-hand tools, we offer specific left hand thread insert models (such as 11EL, 16EL, 22EL) to meet reverse threading requirements.
- Precision Geometry: Our 16er threading inserts feature precision-ground cutting edges to ensure smooth chip flow and reduced cutting forces.

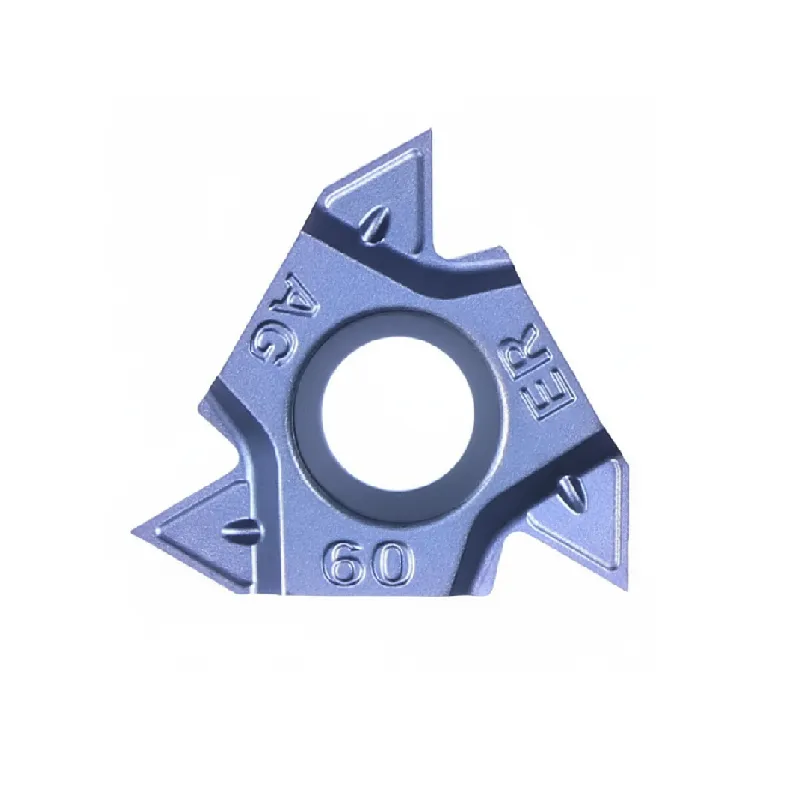

Partial Profile 60° External Threading Insert Table
| I.C. | Pitch (mm） | Pitch (TPI) | Right-hand | Left-hand | L | X | Y |
|---|---|---|---|---|---|---|---|
| 1/4″ | 0.5-1.5 | 48-16 | 11ERA60 | 11ELA60 | 11 | 0.6 | 0.8 |
| 3/8″ | 0.5-1.5 | 48-16 | 16ERA60 | 16ELA60 | 16 | 0.6 | 0.8 |
| 3/8″ | 1.75-3.0 | 14-8 | 16ERG60 | 16ELG60 | 16 | 1.1 | 1.5 |

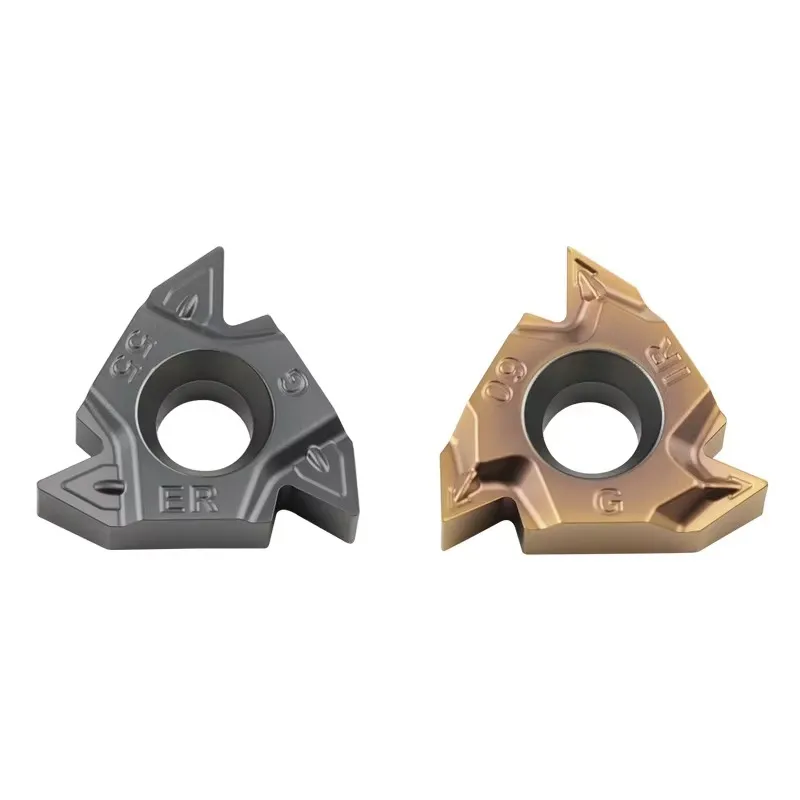

| 3/8″ | 0.5-3.0 | 48-8 | 16ERAG60 | 16ELAG60 | 16 | 1.1 | 1.5 |
| 1/2″ | 3.5-5.0 | 7-5 | 22ERN60 | 22ELN60 | 22 | 1.8 | 2.5 |
| 5/8″ | 5.5-6.0 | 4.5-4 | 27ERQ60 | 27ELQ60 | 27 | 2.1 | 3.1 |
Partial Profile 60° Internal Threading Insert Table
| I.C. | Pitch (mm) | Pitch (TPI) | Right-hand | Left-hand | L | X | Y |
|---|---|---|---|---|---|---|---|
| 5/32″ | 0.5-1.5 | 48-16 | 06IRA60 | 0.6 | 0.6 | 0.6 | |
| 3/16″ | 0.5-1.5 | 48-16 | 08IRA60 | 0.8 | 0.6 | 0.7 | |
| 1/4″ | 0.5-1.5 | 48-16 | 11IRA60 | 11ILA60 | 11 | 0.6 | 0.8 |
| 1/4″ | 0.5-1.5 | 48-16 | 16IRA60 | 16ILA60 | 16 | 0.6 | 0.8 |
| 3/8″ | 1.75-3.0 | 14-8 | 16IRG60 | 16ILG60 | 16 | 1.1 | 1.5 |
| 3/8″ | 0.5-3.0 | 48-8 | 16IRAG60 | 16ILAG60 | 16 | 1.1 | 1.5 |
| 1/2″ | 3.5-5.0 | 7-5 | 22IRN60 | 22ILN60 | 22 | 1.8 | 2.5 |
| 5/8″ | 5.5-6.0 | 4.5-4 | 27IRQ60 | 27ILQ60 | 27 | 1.8 | 2.7 |
(Note: Internal threading models replace “ER” with “IR”, e.g., 16IR AG60. Left-hand models replace “ER” with “EL”, e.g., 16EL AG60.)
Machining Tips
-
Pre-Turning: Because these threading inserts do not top the crest, ensure the workpiece diameter is turned to the final size before threading.
-
Selection: For general workshop needs, the 16er ag60 threading insert is highly recommended due to its broad pitch coverage.
