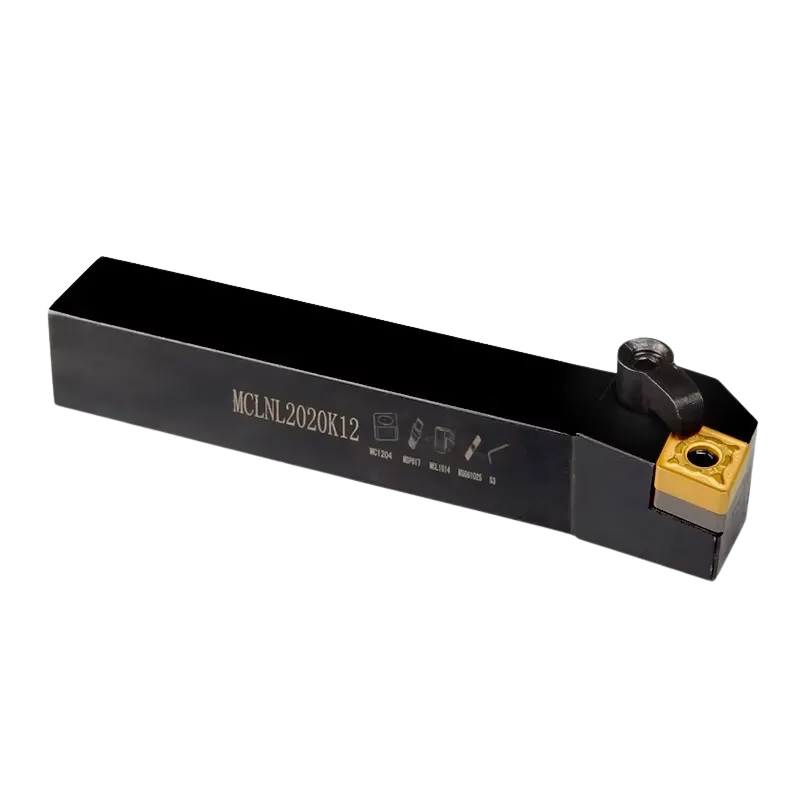

MCLNR/L Turning Tool Holder | High-Precision M-Type Indexable Lathe Tooling for CNMG Inserts
The MCLNR series represents a professional-grade lathe tool holder engineered for exceptional stability in external turning operations. Featuring a 95-degree approach angle, this CNMG tool holder utilizes a robust M-type double-clamping system to ensure the rigidity required for both heavy roughing and high-precision finishing. It is a versatile choice for workshops seeking a reliable tool holder for turning various materials, from steel to tough alloys.
Contact our sales team to discover all of your pricing options.

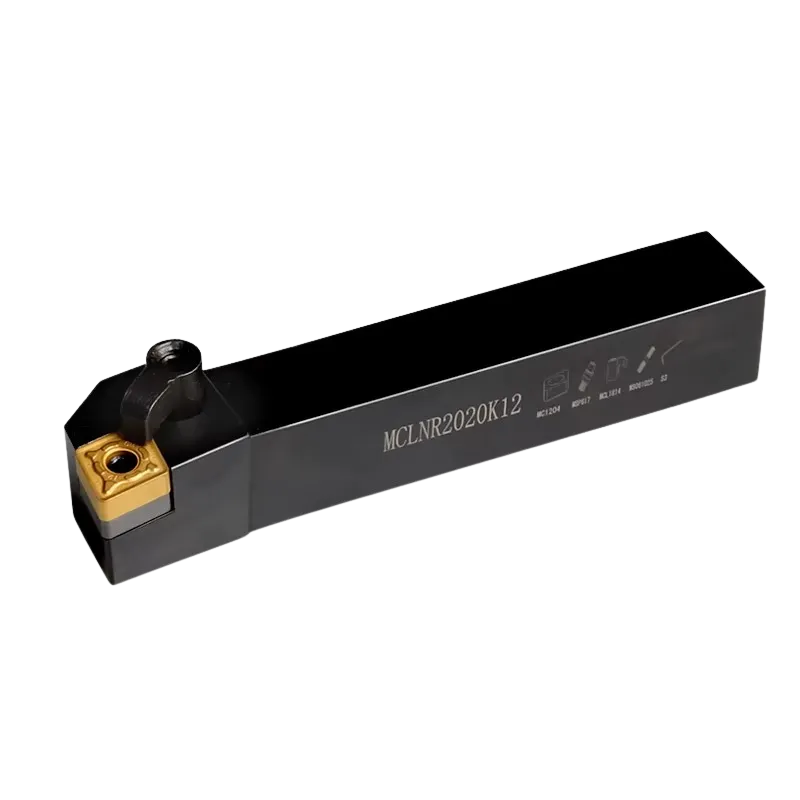

Professional MCLNR Tool Holder for CNC Machining
The MCLNR tool holder is a cornerstone of efficient CNC setups, specifically designed for external longitudinal turning and facing. As a leading choice among indexable turning tool holders, it provides the perfect balance between versatility and performance. Whether you are using the MCLNR 16 4d for compact tasks or larger shanks for industrial production, this tool ensures consistent dimensional accuracy.

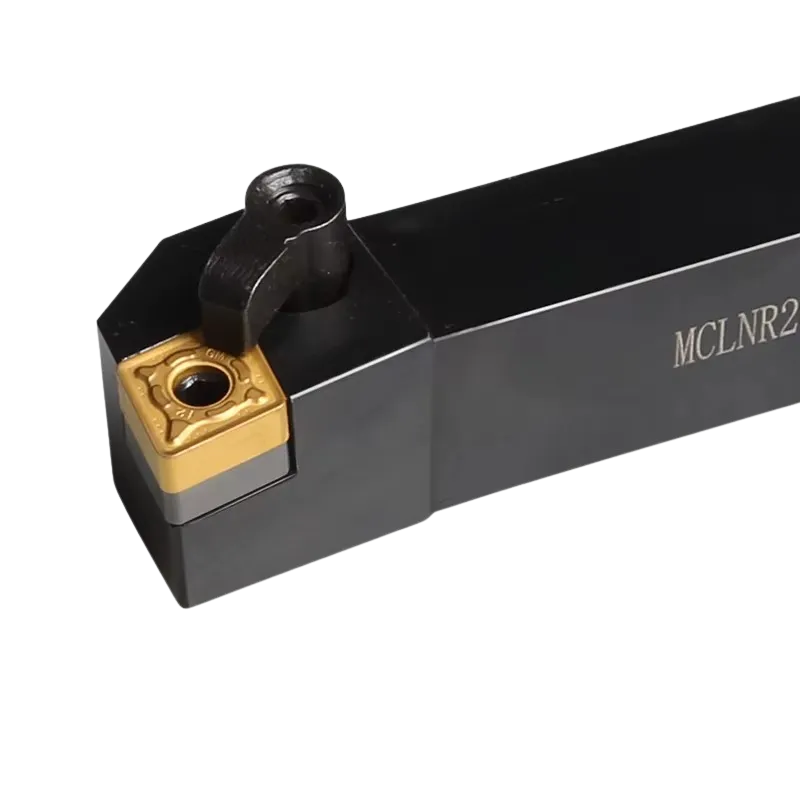

Superior M-Type Double Clamping Mechanism
The core strength of the MCLNR lies in its M-type clamping system. By securing the lathe insert holder from both the top and the center hole, it minimizes micro-vibrations that can compromise surface finish. This “double-lock” feature makes the MCLNR far more stable than basic screw-down alternatives, significantly extending the life of your CNMG inserts during interrupted cuts or high-speed operations.
Engineered for Precision and Versatility
With its 95° lead angle, the MCLNR allows for both facing and turning operations without the need for tool changes. This efficiency is why it remains a top-searched lathe turning tool holder globally. The hardened steel body is treated for high-temperature resistance and anti-corrosion, ensuring that your CNC turning tool holder types investment lasts through thousands of cycles.
Specifications
| Feature | Details |
| Model Number | MCLNR Series (e.g., 16 4d, 2020K12, 2525M12) |
| Tool Category | Indexable Turning Tool Holders |
| Clamping System | M-Type (Double Clamp / Multi-lock) |
| Approach Angle | 95° |
| Compatible Inserts | CNMG 1204 / CNMG 432 |
| Max Rigidity | High (Suitable for Interrupted Cutting) |
| Hand Orientation | Right Hand (Standard) / Left Hand |

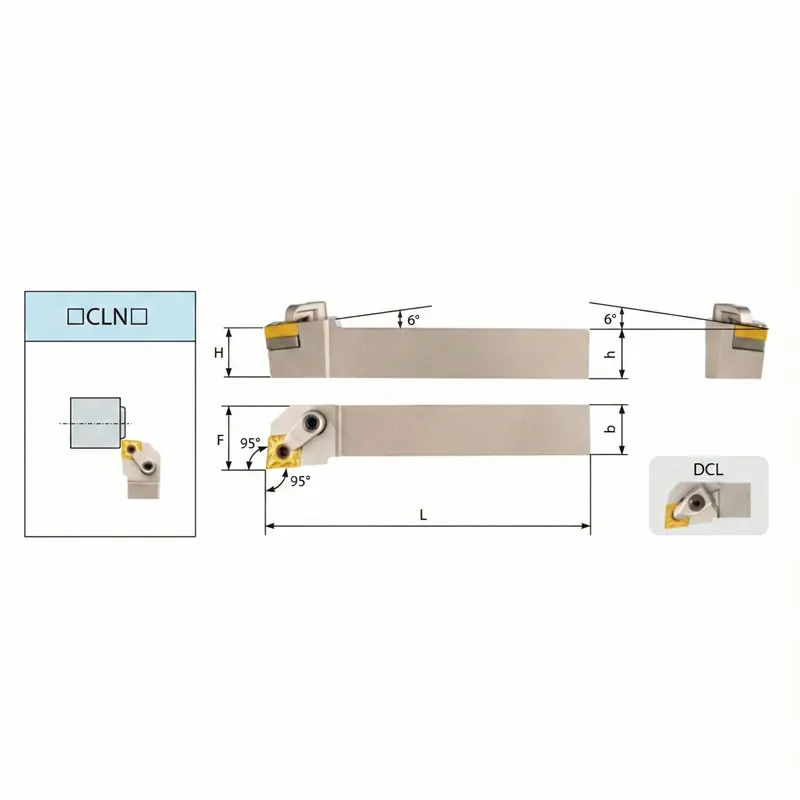

| MODEL | SIZE(MM) | INSERT | SHIM | CENTER PIN | WRENCH | HATEN | DGUBLE SCRE | WRENCH | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LEFT | RIGHT | h | b | H | F | L | |||||||
| MCLNE1616H12 | MCLNR1515H12 | 16 | 16 | 16 | 20 | 100 | CN□□1204□□ | MC1204 | CTM617 | L3 | HL1813 | ML0625 | L3 |
| MCLNL2020K12 | MCLNR2020K12 | 20 | 20 | 20 | 25 | 125 | CN□□1204□□ | ||||||
| MCLNL2525M12 | MCLNR2525M12 | 25 | 25 | 25 | 32 | 150 | CN□□1204□□ | ||||||
| MCLNL3232P12 | MCLNR3232P12 | 32 | 32 | 32 | 40 | 170 | CN□□1204□□ | ||||||
| MCLNL4040R12 | MCLNR4040R12 | 40 | 40 | 40 | 50 | 200 | CN□□1204□□ | ||||||
| MCLNL2525M16 | MCLNR2525M16 | 25 | 25 | 25 | 32 | 150 | CN□□1606□□ | MC1604 | CTM0822 | L3 | HL2217 | ML0830 | L4 |
| MCLNL3232P16 | MCLNR3232P16 | 32 | 32 | 32 | 40 | 170 | CN□□1606□□ | ||||||
| MCLNL4040R16 | MCLNR4040R16 | 40 | 40 | 40 | 50 | 200 | CN□□1606□□ | ||||||
| MCLNL2525M19 | MCLNR2525M19 | 25 | 25 | 25 | 32 | 150 | CN□□1906□□ | MC1904 | CTM1022 | L4 | HL2217 | ML0830 | L4 |
| MCLNL3232P19 | MCLNR3232P19 | 32 | 32 | 32 | 40 | 170 | CN□□1906□□ | ||||||
| MCLNL4040R19 | MCLNR4040R19 | 40 | 40 | 40 | 50 | 200 | CN□□1906□□ |
