Positive Face Milling Insert Range

SEET, SEKT, SEHT & SEER Face Milling Inserts

Compare SEET1203AFEN, SEKT1204AFTN, SEHT1204AFFN, SEER1203AFS and SEER1504AFS by dimensions, geometry direction, grade availability and cutter compatibility. Match SEKT1204AFTN and SEHT1204AFFN to TSE-45 face milling cutters, and match SEET1203AFEN plus the SEER platforms to compatible SE-12 cutter bodies.

View Insert Specifications Match TSE-45 Cutters Request Pricing

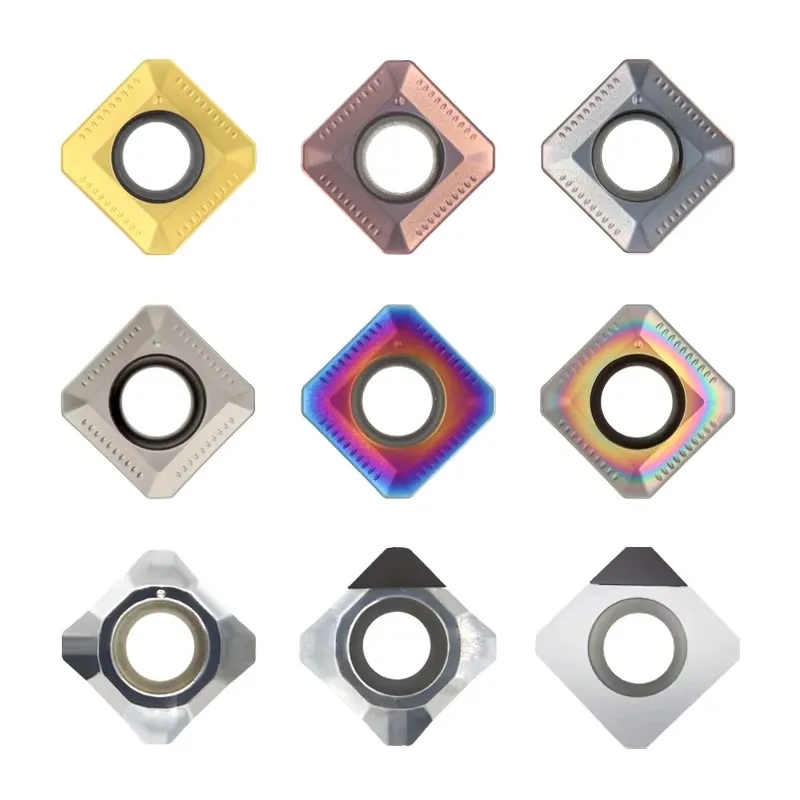

SEKT1204 face milling inserts for general-purpose machining
SEKT1204 general-purpose face milling inserts

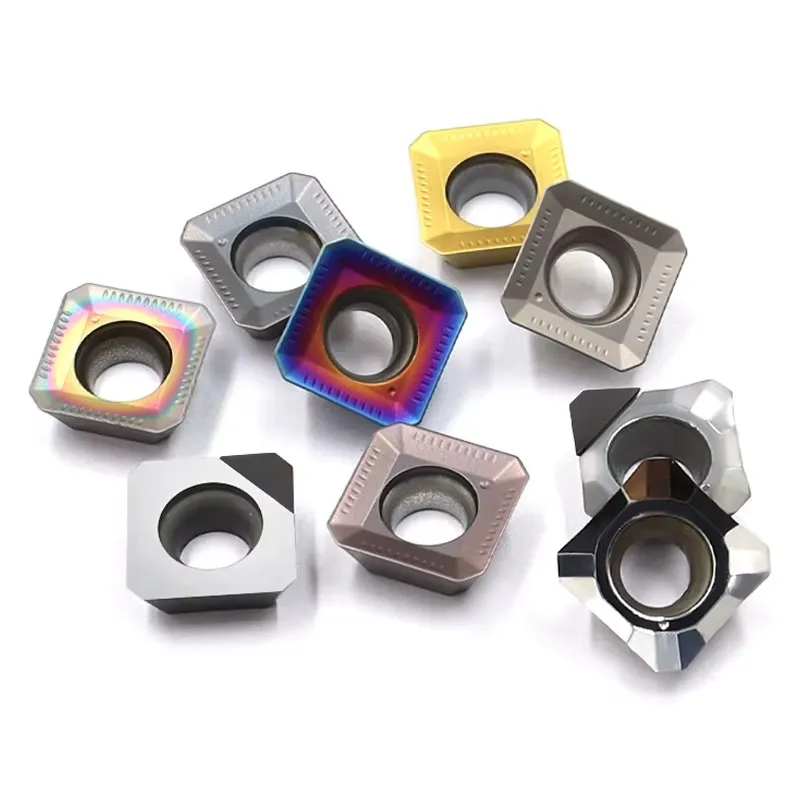

SE face milling carbide insert
SE face milling insert appearance
Product ModelsFive complete SE face milling insert codes
Size Platforms1203, 1204 and 1504
Verified D GradesD530, D570, D580, D7320 and D01
SEET1203 Grade OptionsD530, D570 and D580
Cutter PlatformsTSE-45 for 1204; SE-12 for SEET and SEER
TSE-45 Cutter RangeØ50–250 mm, 4–14 teeth
Browse by Product

Five SE Face Milling Insert Models

Use the complete designation rather than ordering from the two-letter “SE” family name. Dimensions, grades and cutter compatibility differ between the 1203, 1204 and 1504 platforms.

SEET1203AFEN

1203 Face Milling Platform

L and IC 12.55 mm, thickness 3.18 mm and RE 0.80 mm. Grade Options are D530, D570 and D580; cutter platform is SE-12.

View SEET specifications
SEKT1204AFTN

General 1204 Face Milling

13.40 mm IC platform with four coated grade options and confirmed TSE-45 compatibility.

View SEKT specifications
SEHT1204AFFN

Aluminum / Non-Ferrous

The same core 1204 dimensions with D01 grade direction and confirmed TSE-45 compatibility.

View SEHT specifications
SEER1203AFS

Compact SEER Platform

12.58 mm IC and 3.44 mm thickness for a compatible SE-12 face milling cutter.

View SEER1203 specifications
SEER1504AFS

Larger SEER Platform

15.88 mm IC and 4.88 mm thickness for a larger compatible SE-12 face milling cutter.

View SEER1504 specifications
Product Family Definition

What Are SEET, SEKT, SEHT and SEER Inserts?

These are square positive-relief indexable milling insert families used for face milling in compatible cutter bodies.

The first two letters identify the square shape and positive clearance direction, while the following letters and numbers distinguish tolerance, clamping form, size and geometry. The complete code is required because SEET1203, SEKT1204, SEHT1204, SEER1203 and SEER1504 are not one universal pocket.

SEKT1204AFTN and SEHT1204AFFN use the TSE-45 platform. SEET1203AFEN, SEER1203AFS and SEER1504AFS use the SE-12 cutter platform; the exact SE-12 pocket must still match the selected size.
SEET

SEET1203AFEN

12.55 mm square platform, 3.18 mm thickness and 0.80 mm corner radius. Grades D530, D570 and D580; compatible with the SE-12 platform.

SEKT

General Coated 1204

AFTN geometry and D530, D570, D580 or D7320 grade options.

SEHT

Non-Ferrous 1204

AFFN geometry with D01 grade for aluminum and related non-ferrous direction.

1203

SEER1203AFS

Compact SEER platform with a 2.30 mm mounting-hole dimension for a compatible SE-12 cutter.

1504

SEER1504AFS

Larger SEER platform with 15.88 mm IC and 4.88 mm thickness for a compatible SE-12 cutter.

Dimensions and Grade Options

SE Face Milling Insert Specifications

Compare the verified dimensions, grade options and cutter platforms for the five listed SE face milling inserts.

SEKT1204 and SEHT1204 insert dimension drawing SEKT / SEHT 1204 Dimension Drawing Used with the TSE-45 face milling cutter platform.
SEET1203AFEN insert dimension drawing SEET1203AFEN Dimension Drawing Used with the compatible SE-12 face milling cutter platform.
Complete DesignationL (mm)IC (mm)T (mm)D (mm)BS (mm)RE (mm)Grade OptionsApplication DirectionCutter Platform
SEET1203AFEN12.5512.553.18——0.80D530D570D580General face millingSE-12
SEKT1204AFTN—13.403.974.302.45—D530D570D580D7320General 45° face millingTSE-45
SEHT1204AFFN—13.403.974.302.45—D01Aluminum and non-ferrous face millingTSE-45
SEER1203AFS—12.583.442.302.00—D530D570D580D7320General face millingSE-12
SEER1504AFS—15.884.883.202.20—D530D570D580D7320Larger SEER face milling platformSE-12
SEKT1204AFTN and SEHT1204AFFN use TSE-45 cutter bodies. SEET1203AFEN, SEER1203AFS and SEER1504AFS use SE-12 cutter bodies; match the exact 1203 or 1504 pocket before ordering.
Product Comparison

SEET vs SEKT vs SEHT vs SEER

SEET1203AFEN

SE-12 1203 Platform

  • L and IC 12.55 mm with 0.80 mm corner radius.
  • Grade Options: D530, D570 and D580.
  • Uses a compatible SE-12 cutter body.
SEKT1204AFTN

General Face Milling

  • Confirmed TSE-45 1204 platform.
  • Four coated grade options.
  • Steel, stainless and cast-iron grade directions.
SEHT1204AFFN

Aluminum Direction

  • Confirmed TSE-45 1204 platform.
  • D01 grade only.
  • Non-ferrous and aluminum face-milling direction.
SEER1203 / 1504

SE-12 Cutter Platform

  • Two different SEER size platforms.
  • Four coated grade options.
  • Match the exact SE-12 pocket to the 1203 or 1504 insert.
Carbide Grade Direction

Grade Options by Workpiece Material

First verify that the grade is listed for the complete insert model, then match the material, machining stability, coolant and wear mode. SEET1203AFEN is available in D530, D570 and D580.

D530

Steel and cast-iron direction where toughness and interrupted-cut reliability are important.

D570

General steel and stainless-steel direction, including stable and lighter finishing loads.

D580

Steel and cast-iron direction for selected stable machining and wear-resistance requirements.

D7320

General-purpose direction across steel, stainless steel and cast iron.

D01

Aluminum and non-ferrous direction, listed only for SEHT1204AFFN.

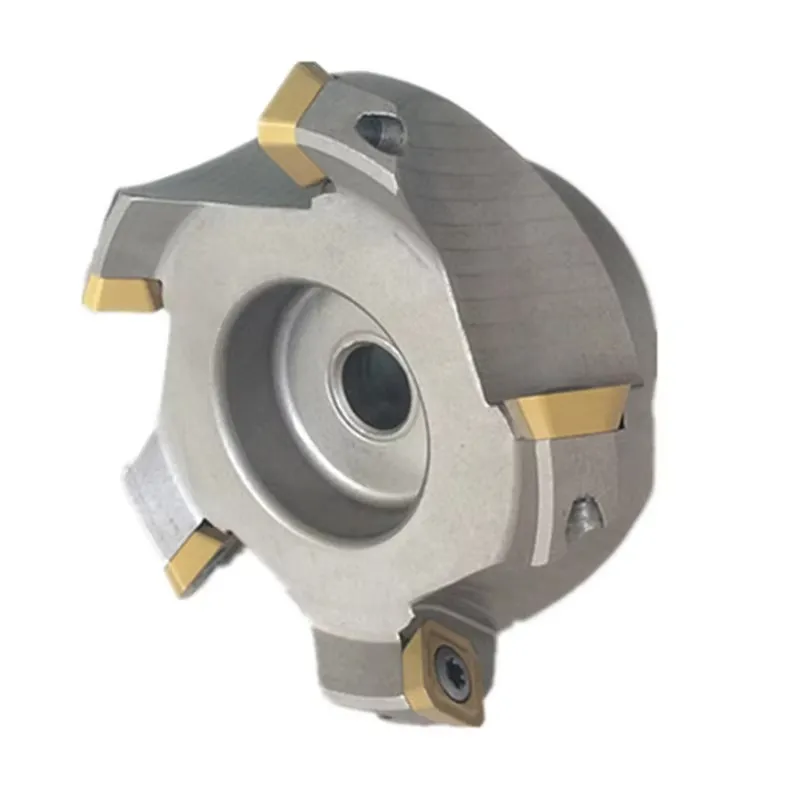

TSE-45 face milling cutter for SEKT1204 and SEHT1204 inserts TSE-45 Face Milling Cutter Compatible with SEKT1204AFTN and SEHT1204AFFN.
Confirmed Cutter Compatibility

Match SEKT and SEHT 1204 Inserts to TSE-45 Cutters

The TSE-45 face milling range is specified for the SE□T1204 platform. This confirms the SEKT1204AFTN and SEHT1204AFFN size direction, but the complete geometry and actual pocket condition must still be checked.

Ø50–63 mm4- and 5-tooth cutters with 22 mm bores.
Ø80–100 mm6- and 7-tooth cutters with 27 or 32 mm bores.
Ø125–160 mm8- and 10-tooth cutters with 40 mm bores.
Ø200–250 mm12- and 14-tooth cutters with 60 mm bores.
TSE-45 uses M5×12 insert screws and a T20 wrench. This section applies to SEKT1204AFTN and SEHT1204AFFN.
View TSE-45 ModelsFace Milling Tools
Complete Cutter Range

TSE-45 Face Milling Cutter Models

Cutter ModelTeethCutting ØD (mm)Maximum ØD1 (mm)Bore Ød (mm)Length (mm)W (mm)T (mm)Insert Platform
TSE12-50-22-4T45064225010.46.3SEKT1204 / SEHT1204
TSE12-63-22-5T56377225010.46.3SEKT1204 / SEHT1204
TSE12-80-27-6T68094275012.47.0SEKT1204 / SEHT1204
TSE12-100-32-7T7100114325014.48.0SEKT1204 / SEHT1204
TSE12-125-40-8T8125139406316.49.0SEKT1204 / SEHT1204
TSE12-160-40-10T10160174406316.49.0SEKT1204 / SEHT1204
TSE12-200-60-12T12200210606325.716.4SEKT1204 / SEHT1204
TSE12-250-60-14T14250260606325.716.4SEKT1204 / SEHT1204

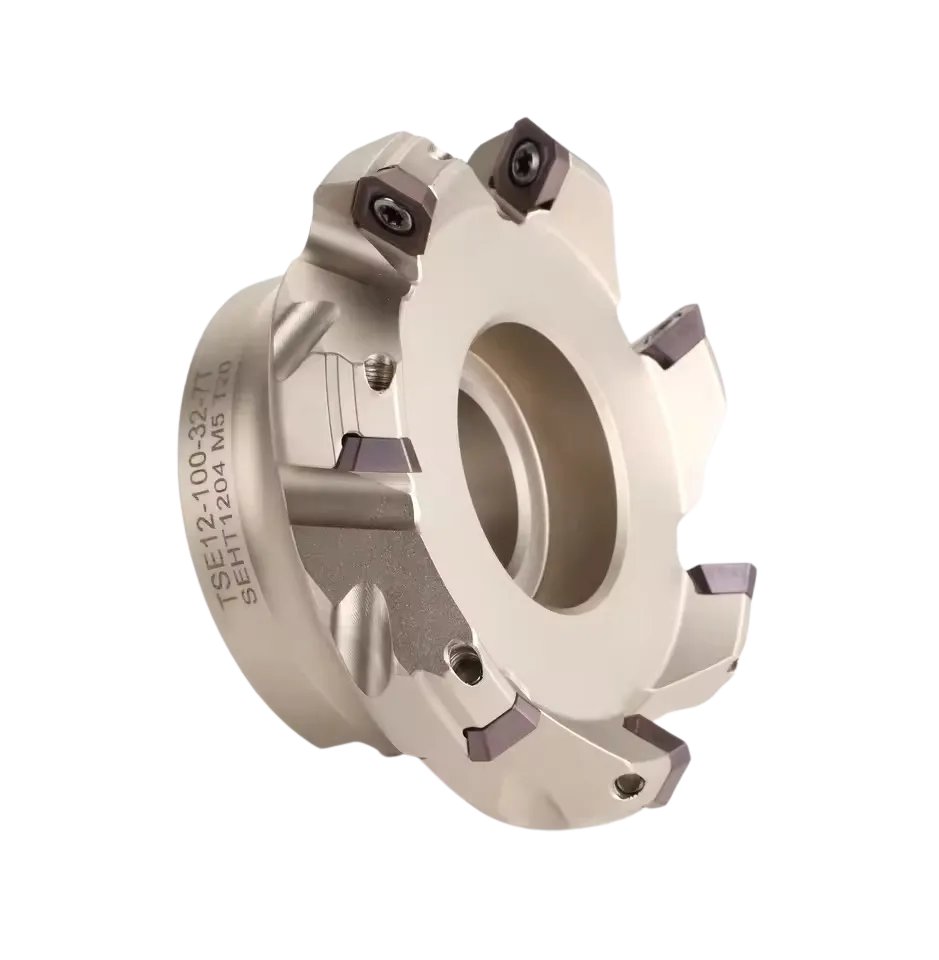

SE-12 face milling cutter for SEET1203AFEN and SEER inserts SE-12 Face Milling Cutter TSE12-100-32-7T image reference for the SE-12 cutter platform.
SE-12 Cutter Compatibility

Match SEET1203AFEN and SEER Inserts to SE-12 Cutters

SEET1203AFEN, SEER1203AFS and SEER1504AFS use the SE-12 face milling cutter platform. The exact cutter pocket must match the selected 1203 or 1504 insert size.

SEET1203AFEND530, D570 and D580 grade options; use the matching SE-12 1203 pocket.
SEER1203AFSCompact SEER1203 platform; use the matching SE-12 1203 pocket.
SEER1504AFSLarger SEER1504 platform; use the matching SE-12 1504 pocket.
Model VerificationConfirm cutter diameter, bore, tooth count, screw and actual pocket before quotation.
Do not substitute a 1203 insert into a 1504 pocket, or place an SE-12 insert into the TSE-45 1204 platform.
Send Your SE-12 Cutter CodeFace Milling Tools
Face Milling Applications

SE Face Milling Insert Applications

Actual feed, depth and surface result depend on the complete insert, grade, cutter body, workpiece material, machine rigidity and setup.

01

45° Face Milling

Primary application for SEKT1204AFTN and SEHT1204AFFN in compatible TSE-45 cutters.

Face milling tools
02

Steel Face Milling

Use a listed coated grade according to stability, interruption and wear mode.

03

Stainless Steel Milling

D570 or D7320 direction can be reviewed where the complete model and conditions are suitable.

04

Cast Iron Milling

D530, D580 or D7320 direction can be selected according to stability and edge condition.

05

Aluminum Face Milling

SEHT1204AFFN in D01 is the confirmed non-ferrous product direction.

06

SE-12 Face Milling

Use SEET1203AFEN, SEER1203AFS or SEER1504AFS with the matching SE-12 cutter pocket.

Selection Checklist

How to Choose an SE Face Milling Insert

1
Confirm the Cutter BodyRecord the complete TSE-45 or SE-12 face-mill model and pocket.
2
Select the Correct FamilyChoose SEET, SEKT, SEHT or SEER according to the existing insert and cutter.
3
Confirm the SizeMatch the 1203, 1204 or 1504 platform exactly.
4
Check Every Available DimensionConfirm L, IC, T, D, BS and RE where they apply to the selected model.
5
Select an Available GradeUse only a grade listed for the complete product designation.
6
State Material and OperationInclude material, hardness, face-milling depth, interruption and finish target.
7
Send Quantity and Tool-Life DataProvide quantity, cutting data, current wear problem and packaging requirement.
Request Pricing

Request SE Face Milling Insert Pricing and Compatibility Review

Provide the complete insert and cutter details so the correct dimensions, grade, geometry and pocket fit can be checked.

Complete SEET1203AFEN, SEKT1204AFTN, SEHT1204AFFN, SEER1203AFS or SEER1504AFS code TSE-45 or SE-12 cutter-body model, pocket photo, screw and wrench information Workpiece material, hardness, operation and surface-finish target Current cutting speed, feed, depth and interruption condition Required quantity, packaging and current tool-life problem
